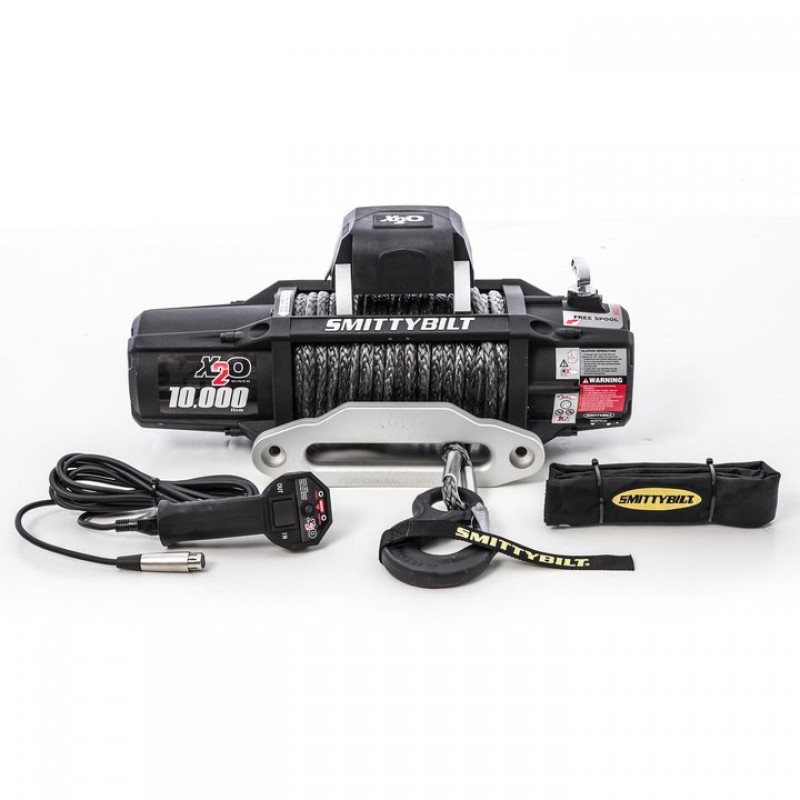

Smittybilt X20-10 Comp Gen2 Waterproof Winch with Synthetic Rope and Aluminum Fairlead - 10,000 lbs.

Smittybilt X20-10 Comp Gen2 Waterproof Winch with Synthetic Rope and Aluminum Fairlead - 10,000 lbs.

by Smittybilt

Part no: SB-98510

Availability: In stock

This item is excluded from all sales and promotions.

$549.99

Product Details

Important Notes:

  • Sold individually

Fits:

  • Universal

Description:

The Smittybilt X2O Winches have been enhanced in almost every area for increased performance and trouble free operation. Every X2O winch features a Series Wound 6.6 HP motor that is completely sealed, as well as a 3-Stage Planetary Gear System. The X2O winch features a completely waterproof 500 AMP solenoid pack that can be mounted in 2 different locations, depending on your application needs. They also include a new controller that can be wired to the winch or unplugged for trouble-free wireless operation. The X2O also features optimized gear ratios that deliver lightning-fast line speeds. And finally, all X2O winches are covered by the Smittybilt Lifetime Warranty, providing peace of mind as well as unparalleled performance. With all of these features, you can count on the X2O winch to be there every time, in every situation.

Product Details:

  • Waterproofing: IP68 Rating
  • Rated Line Pull: 10,000Lbs (4,545kgs) Single Line
  • Motor: 6.6hp Series Wound
  • Control: Remote Switch, 12 (3.7m) lead
  • Gear Train: 3-Stage Planetary
  • Gear Ratio: 218:1
  • Clutch: Sliding Ring Gear
  • Brake: Automatic Out-Of-Drum
  • Drum Size: Diameter 2.5
  • Cable: 98.5 3/8 Diameter
  • Cable Type: Synthetic Rope
  • Fairlead: Hawse
  • Remote Control: Included
  • Integrated Wireless Remote
  • Recommended Battery: 650CCA Minimum for Winching
  • Battery Leads: 25mm2, 72(1.83m)1
  • Finish: Textured Black
  • Weight: 67.0Lbs (30.4Kgs)
  • Mounting Bolt Pattern: 10.0 x 4.50
  • Overall Dimensions: (L x W x H) 22.3 x 5.4 x 9.4

Parts Included:

  • (1) Smittybilt X20-10 Comp Gen2 Waterproof Winch with Synthetic Rope and Aluminum Fairlead -10,000 lbs.

Additional Information

SKU SB-98510
Name Smittybilt X20-10 Comp Gen2 Waterproof Winch with Synthetic Rope and Aluminum Fairlead - 10,000 lbs.
Brand Smittybilt
Application Universal
Make Model No
SKU Aliases No
Part Type Winch
Color No
Diameter No
Fairlead Type No
Finish No
Length No
Line Length 75'-100'
Line Type Synthetic Cable
Load Rating No
OE Bumper No
Rated Line Pull 8000-10000 lbs
Remote Control No
Type No
Price $549.99
Shipping Surcharge $0.00
Position Rear
Automatic or Manual Transmission No
