Important Notes:
- The Tera30 is a direct replacement for a JK Dana 30 front axle housing
- Internal components NOT included
- Sold individually
Description:

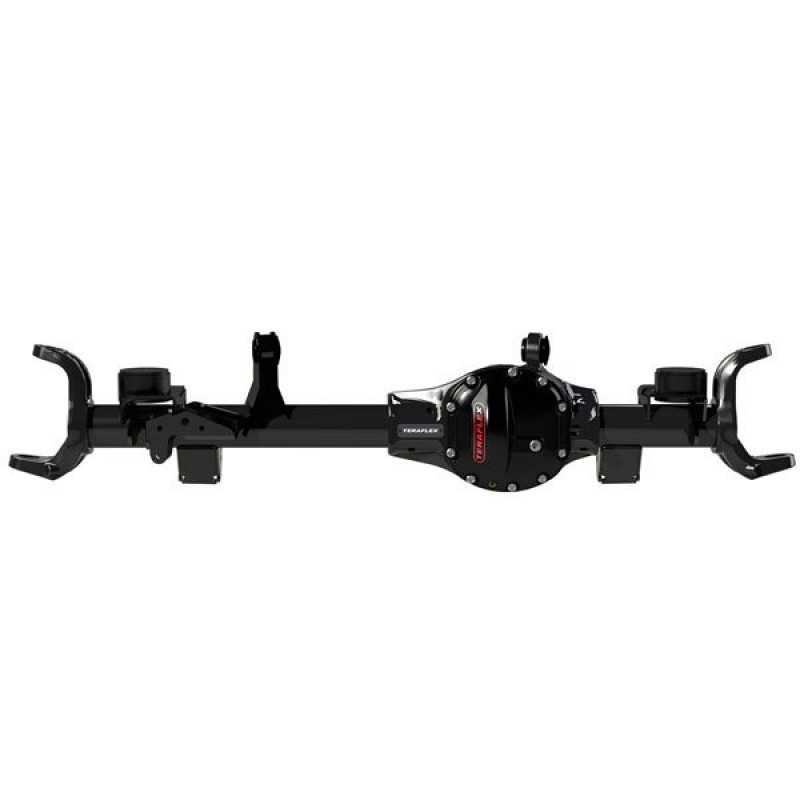

This TeraFlex Front Tera30 Replacement Axle Housing for 0"- 3" Lift is the ideal solution for a bent, broken or damaged front axle on your Wrangler JK. The Tera30 is a direct bolt-in upgrade that strengthens the weak areas of the stock front axle.
Product Details:
- Forged heavy duty inner knuckles with greater upper and lower section strength
- 1/4 Thick CNC laser cut axle brackets for extreme strength
- Reinforced front trackbar mount (ties into spring pad) for greater strength
- Integrated lower flexarm skid plates
- Pre-tapped hole on spring perch for bump stop extensions
- Pre-drilled holes for limit straps and lower spring retainers
- Heavy duty ductile iron differential cover
- Axles seals pre-installed
- Pre-installed upper control arm bushings
- Retains all JK ESP, ABS & speedometer sensor capability
- Proper pinion angle for lifted JK applications
- Premium UV protected triple-stage powder coat process for superior corrosion resistance
- Ductile cast iron housing with increased rib gussets
- Smooth radius bottom design to glide over rocks & obstacles
- Asymmetric housing design, for extra long tube side strength
- Bottom oil drain hole for simple fluid changes
- Integrated factory location upper control arm mount
- 3.25 x 0.25 axle tube increases strength to resist bending and torsion with minimal weight increase
Parts Included:
- (1) TeraFlex Front Tera30 Replacement Axle Housing for 0"- 3" Lift
Dimensions:
- Length: 60.5"
- Width: 20"
- Height: 23"
- Weight: 190 lbs
