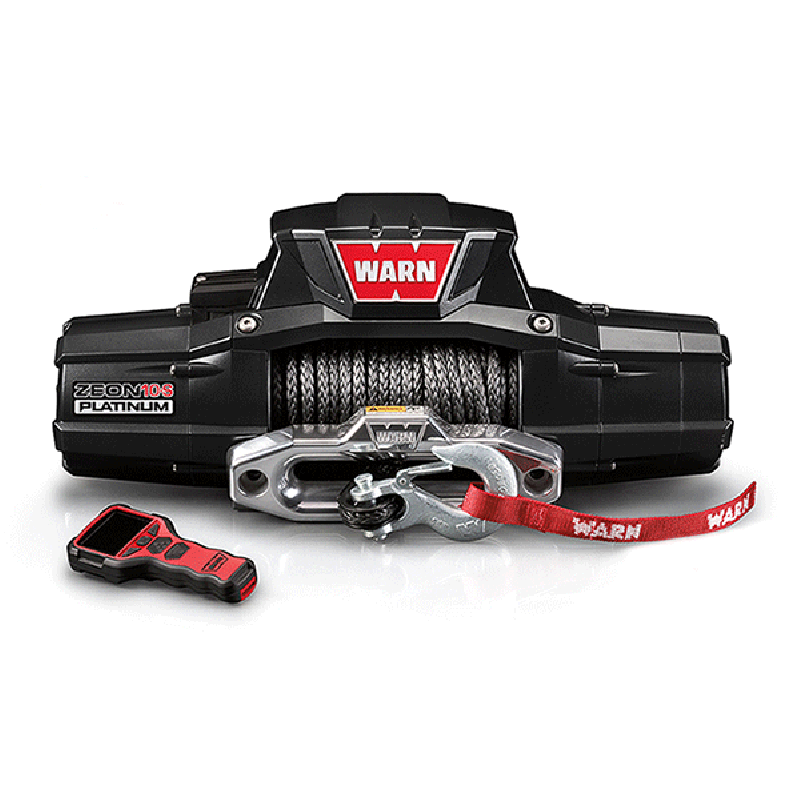

Warn ZEON Platinum 10-S Winch with Spydura Synthetic Rope and Hawse Fairlead - 10,000 lbs.

Part no: W92815

Price as configured:

$0.00

Regular Price: Save % ()

Out Of Stock
Make sure it fits!

This product fits only specific vehicles.

Select Your Vehicle

Main Bundle Part

  • SKU: W92815
    Warn ZEON Platinum 10-S Winch with Spydura Synthetic Rope and Hawse Fairlead - 10,000 lbs.   +$2,799.99
    SKU: W92815
    More info
  1. SKU:
    +$69.99 AND UP
    SKU:
  2. SKU:
    +$623.56 AND UP
    SKU:
$0.00

Product Info

Description

Important Notes:

  • A Warn Control Pack Relocation Kit is required to Mount the Control Box remotely from your winch. Short Wiring Kit with Mounting Bracket, W89970 or Long Wiring Kit without Mounting Bracket, W89960, Mounting Bracket Only W89770 .
  • Product warranty void outside USA and Canada

Description:

The Warn ZEON Platinum 10-S Winch with Spydura Synthetic Rope is the most technically advanced winch ever conceived. TAn Advanced Wireless Remote that controls the winch and the clutch, eliminating the need for a manual clutch. It is durability and waterproofing which sets a new benchmark for its class. Add in a high-performance motor package, and you have a game changing winch for Jeeps.

Warn's Remote Controlled Clutch engage and disengage with the Advanced Wireless Remote. The fasteners delivers maximum corrosion resistance-exceeding 400 hours of salt-spray testing. Also the Large diameter alloy winch drum with steel sleeve is strong, light weight, reduces rope wear, and has an integrated rope anchor for easy rope installation.

Product Details:

  • Rated line pull: 10,000 lbs. (4536 kg) single-line
  • Motor:12V DC series wound
  • Electrical controls: Contactor
  • Remote Control: Advanced Wireless
  • Geartrain: 3-stage planetary
  • Gear ratio: 162:1
  • Clutch (freespooling): Rotating ring gear
  • Brake: Automatic mechanical cone
  • Drum Diameter/Length: 3.15"/9.0" (80mm/229mm)
  • Rope: 3/8" x 100' (9.52mm x 30m) Spydura synthetic
  • Fairlead: Hawse
  • Recommended Battery: 650 CCA minimum for winching
  • Battery leads: 2 gauge, 72" (1.83m)
  • Finish: Satin-black powder coat
  • Warranty: Limited Lifetime Mechanical and 7-year Electrical Warranty to the original purchaser, with proof of purchase, no registration required.

Parts Included:

  • (1) Warn ZEON Platinum 10-S Winch - 10,000 lbs.
  • (1) Spydura Synthetic Rope
  • (1) Hawse Fairlead
  • (1) USB Charging Cable
  • (1) Car Charger Adapter
For California residents: Proposition 65 Warning

Additional Info

SKUW92815
Manufacturer Part Number92815
Variant ID4120988
BrandWarn
Part TypeWinch
SKU Aliases92815
ApplicationJeeps & Trucks
Made in USAYes
Power SourceElectric
Winch Fairlead TypeHawse
Line TypeSynthetic Rope
Winch Rated Line Pull8001 lbs. - 10000 lbs.
Enable Quick ShipYes
