Part no: BIL-24146708

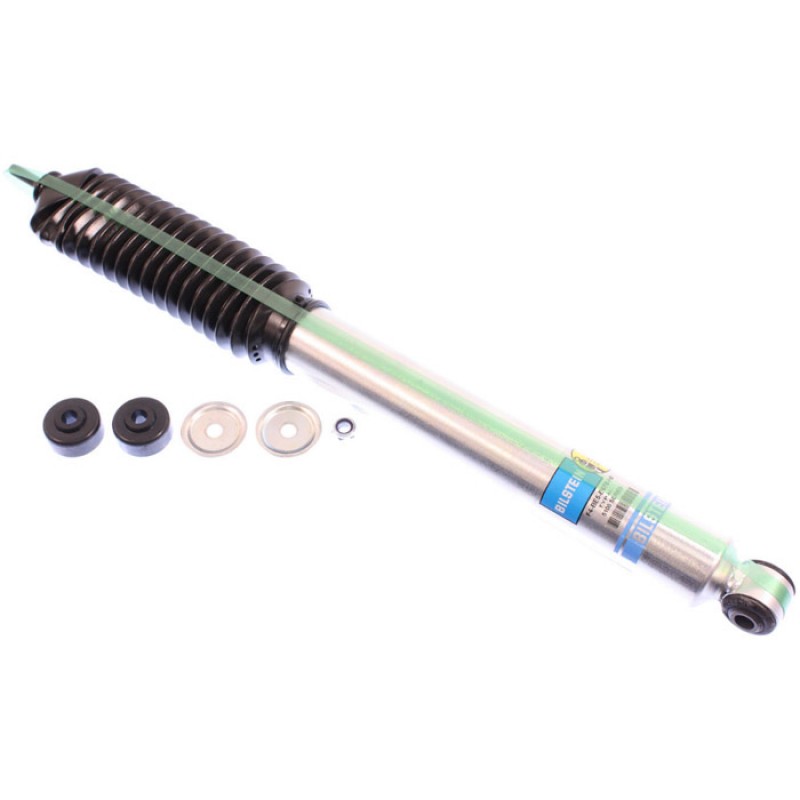

Bilstein Front Monotube Shock for 1.5"- 3" Lift, 5100 Series - Sold Individually

This item is excluded from all sales and promotions.

Save for Later

Product Details

Description:

Important Notes:

  • Sold individually
  • Shock Boots are included
  • Must use Wheel Spacer or offset aftermarket wheels
  • Compression bump stop on chassis may need to be modified to prevent damage to the shock absorber.

Fits:

  • 2007-2015 Jeep Wrangler JK
  • 2007-2015 Jeep Wrangler Unlimited JK

Description:

Bilstein 5100 Series Shock Absorbers are high gas pressure monotube shocks designed specifically for lifted pickups, SUVs and Jeeps. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. They offer super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride.

Features Details:

  • Monotube gas pressure construction
  • Self-Adjusting Deflecting Disc Valving
  • High-Flow Piston Reduces Harshness
  • Independent Rebound & Compression Tuning
  • Larger Working Piston Area for Exact Damping
  • Superior Control for Large Diameter Tires
  • Designed for specific manufacturer lift kits utilizing the stock O.E.M. mounting configuration

Product Details:

  • Reservoir: No
  • Adjustable: No
  • Dust Shield: Yes
  • Finish: Zinc plated
  • Type: Gas Charged
  • Internal Design: Mono-tube
  • Collapsed Length: 14.98"
  • Extended Length: 24.63"
  • Travel Length: 9.65"
  • Lower Mount: Eye 12.1mm
  • Upper Mount: Stem
  • Rod Diameter: 1.81"
  • Shaft Diameter: 14mm
  • Valving Type: Deflective Disc Valving
  • Body Design: 46mm ID smooth body (Non-coilover)

Parts Included:

  • (1) Front Monotube Shock for 1.5"- 3" Lift - 5100 Series

Years Covered:

2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 and 2015

For California residents: Proposition 65 Warning

Vehicle Fitment

YearsMakeModel
2007-2018JeepWrangler JK Unlimited
2007-2018JeepWrangler JK

Additional Information

SKUBIL-24146708
BrandBilstein
SKU AliasesBIL24-146708, 24-146708
PositionFront
