Important Notes:
- Sold individually
- Shock Boot are included
- Compression bump stop on chassis may need to be modified to prevent damage to the shock absorber.
Description:

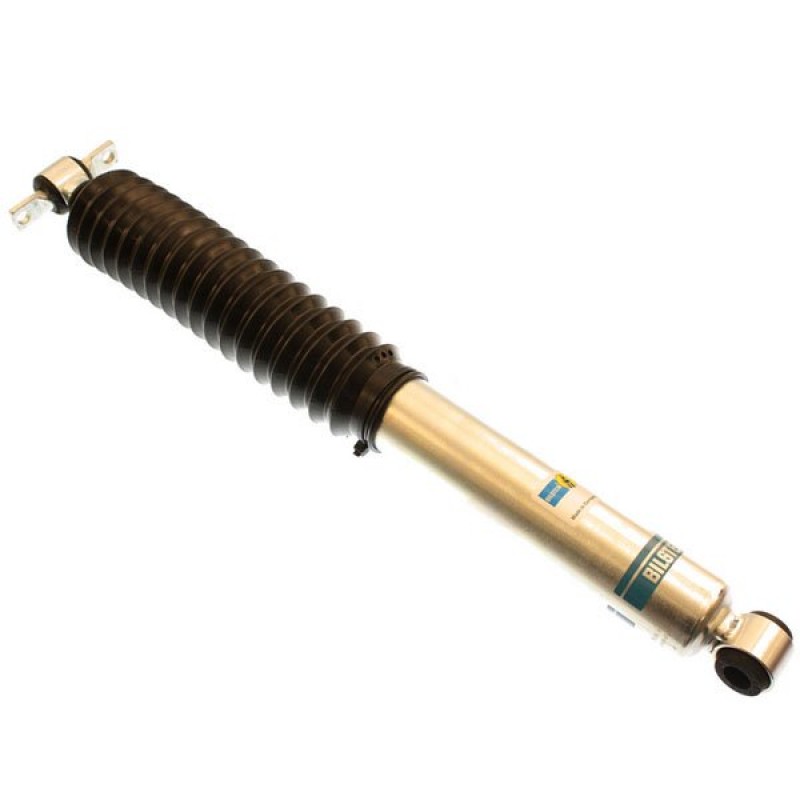

Bilstein 5100 Series Shocks are high gas pressure monotube shocks designed specifically for lifted pickups, SUVs and Jeeps. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. They offer super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride.
Features Details:
- Monotube gas pressure construction
- Self-Adjusting Deflecting Disc Valving
- High-Flow Piston Reduces Harshness
- Independent Rebound & Compression Tuning
- Larger Working Piston Area for Exact Damping
- Superior Control for Large Diameter Tires
- Designed for specific manufacturer lift kits utilizing the stock O.E.M. mounting configuration
Product Details:
- Reservoir: No
- Adjustable: No
- Dust Shield: Yes
- Finish: Zinc plated
- Type: Gas Charged
- Internal Design: Mono-tube
- Collapsed Length: 13.68"
- Extended Length: 21.85"
- Travel Length: 8.17"
- Lower Mount: Eye 16mm
- Upper Mount: Bar Pin
- Rod Diameter: 1.81"
- Shaft Diameter: 14mm
- Valving Type: Deflective Disc Valving
- Body Design: 46mm ID smooth body (Non-coilover)
Parts Included:
- (1) Rear Monotube Shock with 2-3" Lift - 5160 Series
