- Sold individually
- Shock Boots are included
- Compression bump stop on chassis may need to be modified to prevent damage to the shock absorber.
Product Info
Important Notes
Description
Bilstein 5100 Series Shocks are high gas pressure monotube shocks designed specifically for lifted pickups, SUVs and Jeeps. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. They offer super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride.
Features Details:
- Monotube gas pressure construction
- Self-Adjusting Deflecting Disc Valving
- High-Flow Piston Reduces Harshness
- Independent Rebound & Compression Tuning
- Larger Working Piston Area for Exact Damping
- Superior Control for Large Diameter Tires
- Designed for specific manufacturer lift kits utilizing the stock O.E.M. mounting configuration
Product Details
- Reservoir: No
- Adjustable: Yes
- Dust Shield: No
- Finish: Zinc plated
- Type: Gas Charged
- Internal Design: Mono-tube
- Collapsed Length: 16.97"
- Extended Length: 28.44"
- Travel Length: 11.47"
- Lower Mount: Bar Pin
- Upper Mount: Stem
- Rod Diameter: 1.81"
- Shaft Diameter: 14mm
- Valving Type: Deflective Disc Valving
- Body Design: 46mm ID smooth body (Non-coilover)
Parts Included

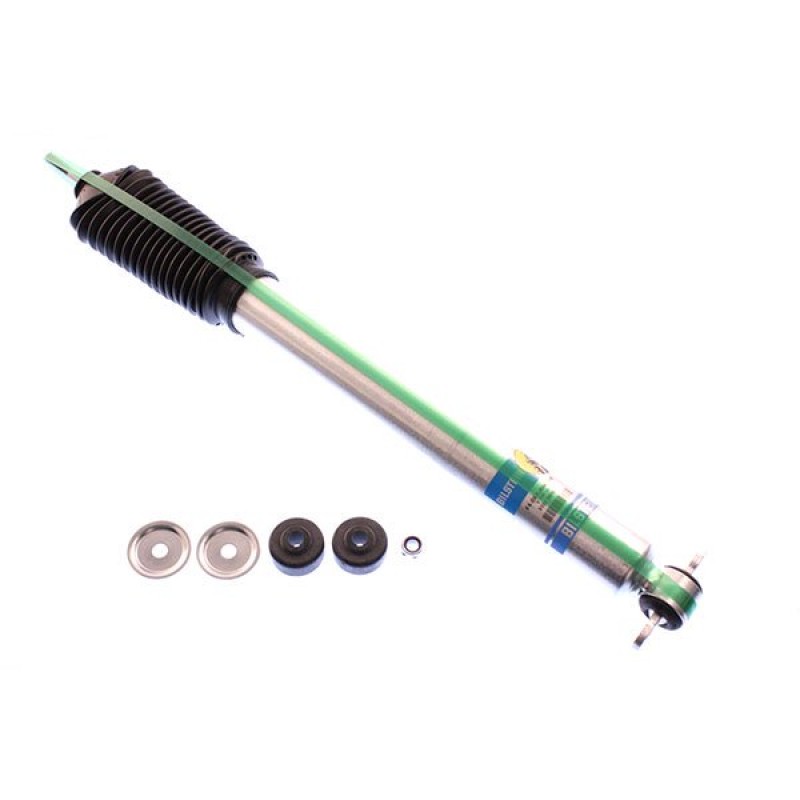

- (1) Front Monotube Shock for 5"- 6" Lift - 5100 Series
Additional Info
| SKU | BIL-24185943 |
|---|---|
| Manufacturer Part Number | 24-185943 |
| Variant ID | 3765967 |
| Brand | Bilstein |
| Part Type | Shock |
| SKU Aliases | BIL-24-185943, BIL24-185943, 24-185943, 24185943, 24-185943 |
| Enable Quick Ship | Yes |
What It Fits
| Years | Make | Model |
|---|---|---|
| 1984-2001 | Jeep | Cherokee XJ |
| 1993-1998 | Jeep | Grand Cherokee ZJ |
| 1993 | Jeep | Grand Wagoneer |
| Years | Make | Model |
|---|---|---|
| 1984-1990 | Jeep | Wagoneer |
| 1997-2006 | Jeep | Wrangler TJ |
| 2004-2006 | Jeep | Wrangler TJ Unlimited |
