- Fits standard Class V 3 inch receivers
- Never exceed factory receiver hitch pull rating
- Always use a quality steel alloy 5/8" hitch pin
- Always pull in line with the hitch, do not bind or side load the shackle
Product Info
Important Notes
Description

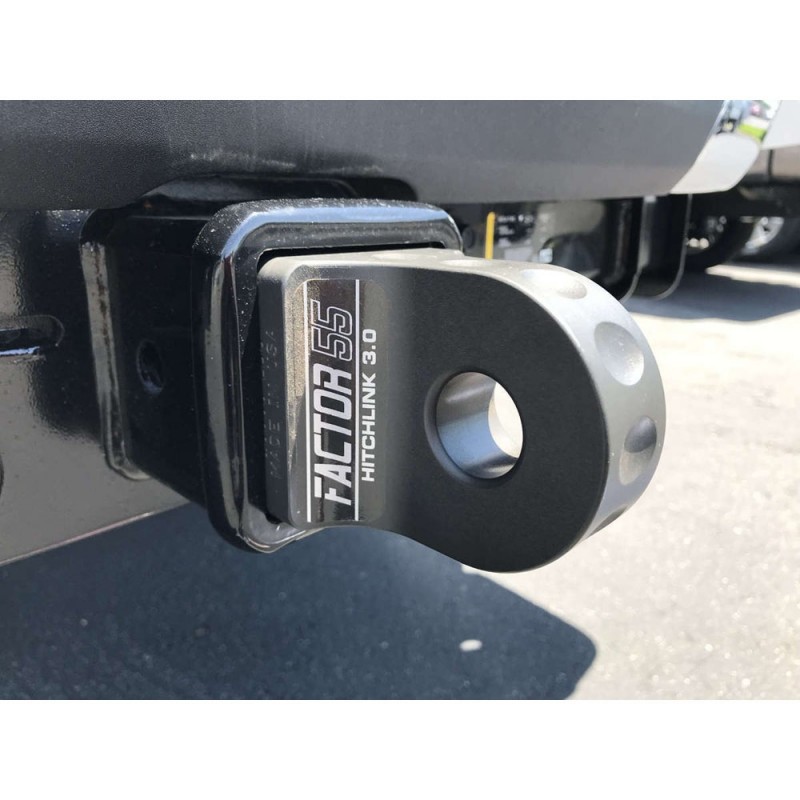

Why reduce a 3" receiver with sleeves when you don't have to! For Class V 3" hitch receivers ONLY. Our truck owners asked and we listened. NO NEED TO SLEEVE Class V hitch receivers to weaker Class III and Class IV. Finally a hitch receiver shackle mount designed for Class V 3" receivers. Only available in Military Specification Anodizing (Mil-A-8625 F Type III) hard anodized gray finish. The HitchLink 3.0 will accept both 3/4 and 7/8 shackles and features a machined radius on the shackle mount hole for soft shackle compatibility. It can be oriented inside the hitch receiver allowing the shackle tab to be parallel to the bumper or vertical depending on its desired need. It also eliminates the need to use a receiver sleeve to downsize your receiver to a 2.5 or a 2" adapter. Rated at 18,000 lbs. Ultimate Failure at 70,000+ lbs.
Product Details
- Use your receiver as a recovery tow point
- Lightweight precision CNC machined 6000 series aluminum
- Weighs only 5 lbs pounds
- Rated at 18000 pounds
- Ultimate failure at 70,000+ pounds
- Fits common 3/4" (7/8" pin) and 7/8" (1" pin) screw pin shackles/D-rings
- Available in the Military Specification Anodizing (Mil-A-8625 F Type III) Gray
- Cross drilled hitch pin attachment (vertical or horizontal shackle pin axis)
- Made in the USA
Parts Included
- (1) Factor 55 HitchLink 3.0 Reciever Shackle Mount for 3" Receivers - Anodized Gray
Additional Info
| SKU | FC-00027-06 |
|---|---|
| Manufacturer Part Number | 00027-06 |
| Variant ID | 6730884 |
| Brand | Factor 55 |
| Part Type | D-Ring Shackle Receiver |
| SKU Aliases | 00027-06 |
