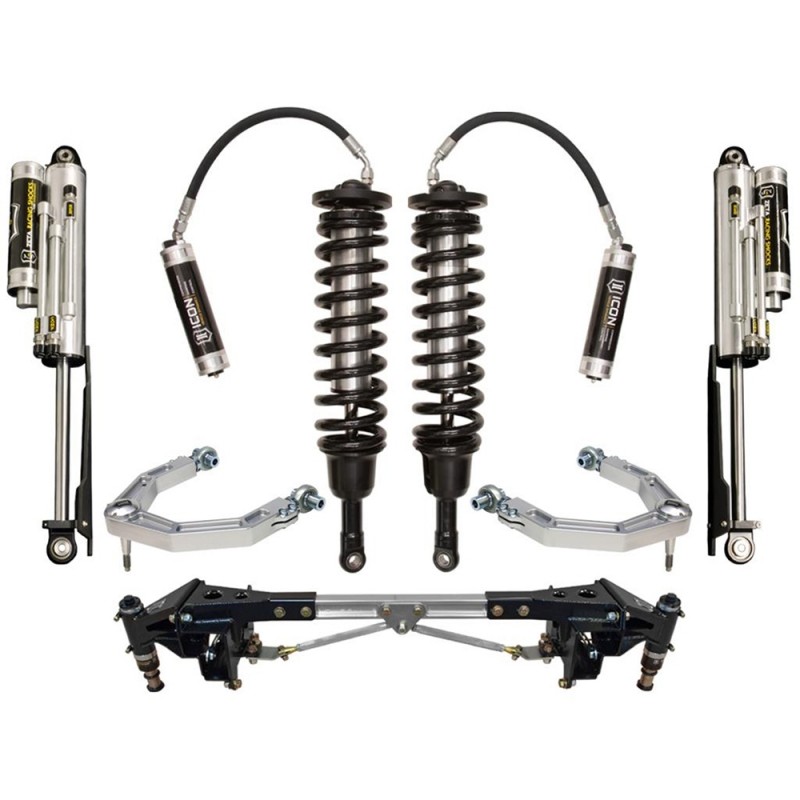

ICON Vehicle Dynamics 2010-2014 FORD RAPTOR STAGE 3 SUSPENSION SYSTEM

Part no: FRDK-K93053

THIS ITEM IS OUT OF STOCK

We're sorry! This product is out of stock. Need help finding a similar product?
Give us a call!! 1-877-553-5337 or Chat with one of our Jeep Experts.

$10,079.60
Make sure it fits!

This product fits only specific vehicles.

Select Your Vehicle

Product Details

  • Key Features of the Raptor Front 3.0 Coil Over Shock:
  • Com 12 PTFE Lined Bearings Ensure Maximum Strength and Durability
  • Oversized 1 Heavy Duty CNC Machined Shock Shafts
  • Extended Droop Travel and Increased Overall Performance on and off road
  • Key Features of the Raptor Rear 3.0 Bypass Shock:
  • 3.0 OEM Replacement Piggyback Reservoir Zeta 3 Tube Bypass Rear Shocks
  • Easy-to-Adjust Detented Adjustment Knobs Offer Quick Adjustability without the Use of Tools
  • High Resolution Bypass Valves Designed for Noticeable Fine Tune Adjustments in Rebound and Compression
  • High Flow CNC Machined Welded Bypass Blocks designed to Increase Fluid Flow for Enhanced Performance & High Definition Tuning
  • Replaceable Bypass Tubes That Can Easy Slide in to Position if you were to Dent or Damage One
  • Direct Bolt in to OEM Location with Bypass Adjustment Knobs Easily Accessible for Tuning Adjustment
  • 3.0 OEM Replacement Remote Reservoir Compression Adjustable Front Coil Over Shocks
  • Special Engineered Dampened Valve Stops for Quiet and Precise Operation without the Standard Bypass Loud Clicking Noise you will find with Other Brands
  • Multi Stage Cad Plated Finish with Polished and Anodized Top Cap / Rod Ends
  • UHMH Machined Shaft & Rod End Protective Shin Guards Standard with Every Kit
  • Key Features of the Raptor Upper Control Arms:
  • 6061 Billet Aluminum
  • Precision CNC Machined
  • Patent Pending Delta Joint
  • Easily Adjustable on the Vehicle for Perfect Wheel Alignments
  • High Precision CNC Machined Pin Provides OEM Like Fitment
  • RSMX PTFE Lined 7/8 Rod Ends
  • Internal Hydraulic Bump Zone Designed for Maximum G-out Control in the Last 40% of Travel
  • O-ring sealed billet dust cover
  • Key Features of Hydraulic Bump Stop System:
  • Designed for increased leaf spring clearance so there is no loss in up travel with stock or aftermarket springs
  • Easy bolt on installation without having to remove the truck bed
  • 6061 Solid billet cross bar that is polished & anodized
  • Bump stop striker pad does not require leaf spring disassembly
  • Comfortable on road manners with sufficient damping capability under extreme load
  • Hydro-pneumatic bump stop increases bump energy capacity
  • Velocity sensitive hydraulic bump stop increases the amount of energy absorbed the faster it is hit
  • Reduces rear end kick and improves overall performance
  • Easy-to-Adjust High Resolution Compression Adjuster Offers Fine Tuning Adjustments For All Types of Terrains
  • Clamshell brackets strengthen frame in critical areas preventing frame damage from extreme off-road use
  • Cross member and tension rods stabilize frame rails and prevent twisting under hard impacts
  • Increases frame rigidity and improves overall vehicle dynamics
  • Industry first billet cross beam
  • Pre-tuned and Nitrogen charged for most Ford Raptors
  • Integrated adjustability for future ICON Raptor specific products
  • Direct Bolt in to OEM Location and Optimum Reservoir Positioning for Superb Heat Dissipation and protection
  • Nitrogen Charged 6063-T832 Aluminum 10 Remote Reservoirs that are Precision CNC Honed & Hard Anodized
  • Adjustable Ride Height from 1 3 of Lift
  • ICON Engineered Eibach 3 5/8 ID High Quality Chrome Silicon Steel Springs that offer increased travel and performance
Read more

Product Info

Description

ICON Vehicle Dynamics is known for its extensive research and development put into every product, the revolutionary outcome of this research is what sets ICON apart from the off-road industry standard. The Ford SVT Raptor was the first production truck, designed & built, to bridge the gap between a standard street pickup truck and an off-road pre-runner. ICON Vehicle Dynamics new 3.0 Performance Shock System w/ Delta Joint Upper Control Arms for the SVT Raptor went through rigorous tests both on- and off-road for several months to enhance the overall performance and ride quality.

Product Details

  • Key Features of the Raptor Front 3.0 Coil Over Shock:
  • Com 12 PTFE Lined Bearings Ensure Maximum Strength and Durability
  • Oversized 1 Heavy Duty CNC Machined Shock Shafts
  • Extended Droop Travel and Increased Overall Performance on and off road
  • Key Features of the Raptor Rear 3.0 Bypass Shock:
  • 3.0 OEM Replacement Piggyback Reservoir Zeta 3 Tube Bypass Rear Shocks
  • Easy-to-Adjust Detented Adjustment Knobs Offer Quick Adjustability without the Use of Tools
  • High Resolution Bypass Valves Designed for Noticeable Fine Tune Adjustments in Rebound and Compression
  • High Flow CNC Machined Welded Bypass Blocks designed to Increase Fluid Flow for Enhanced Performance & High Definition Tuning
  • Replaceable Bypass Tubes That Can Easy Slide in to Position if you were to Dent or Damage One
  • Direct Bolt in to OEM Location with Bypass Adjustment Knobs Easily Accessible for Tuning Adjustment
  • 3.0 OEM Replacement Remote Reservoir Compression Adjustable Front Coil Over Shocks
  • Special Engineered Dampened Valve Stops for Quiet and Precise Operation without the Standard Bypass Loud Clicking Noise you will find with Other Brands
  • Multi Stage Cad Plated Finish with Polished and Anodized Top Cap / Rod Ends
  • UHMH Machined Shaft & Rod End Protective Shin Guards Standard with Every Kit
  • Key Features of the Raptor Upper Control Arms:
  • 6061 Billet Aluminum
  • Precision CNC Machined
  • Patent Pending Delta Joint
  • Easily Adjustable on the Vehicle for Perfect Wheel Alignments
  • High Precision CNC Machined Pin Provides OEM Like Fitment
  • RSMX PTFE Lined 7/8 Rod Ends
  • Internal Hydraulic Bump Zone Designed for Maximum G-out Control in the Last 40% of Travel
  • O-ring sealed billet dust cover
  • Key Features of Hydraulic Bump Stop System:
  • Designed for increased leaf spring clearance so there is no loss in up travel with stock or aftermarket springs
  • Easy bolt on installation without having to remove the truck bed
  • 6061 Solid billet cross bar that is polished & anodized
  • Bump stop striker pad does not require leaf spring disassembly
  • Comfortable on road manners with sufficient damping capability under extreme load
  • Hydro-pneumatic bump stop increases bump energy capacity
  • Velocity sensitive hydraulic bump stop increases the amount of energy absorbed the faster it is hit
  • Reduces rear end kick and improves overall performance
  • Easy-to-Adjust High Resolution Compression Adjuster Offers Fine Tuning Adjustments For All Types of Terrains
  • Clamshell brackets strengthen frame in critical areas preventing frame damage from extreme off-road use
  • Cross member and tension rods stabilize frame rails and prevent twisting under hard impacts
  • Increases frame rigidity and improves overall vehicle dynamics
  • Industry first billet cross beam
  • Pre-tuned and Nitrogen charged for most Ford Raptors
  • Integrated adjustability for future ICON Raptor specific products
  • Direct Bolt in to OEM Location and Optimum Reservoir Positioning for Superb Heat Dissipation and protection
  • Nitrogen Charged 6063-T832 Aluminum 10 Remote Reservoirs that are Precision CNC Honed & Hard Anodized
  • Adjustable Ride Height from 1 3 of Lift
  • ICON Engineered Eibach 3 5/8 ID High Quality Chrome Silicon Steel Springs that offer increased travel and performance
For California residents: Proposition 65 Warning

Additional Info

SKUFRDK-K93053
Manufacturer Part NumberK93053
Variant ID4123470
BrandIcon Vehicle Dynamics
Part TypeSuspension Lift Kit
SKU AliasesK93053

What It Fits

YearsMakeModel
2010-2014FordF150
