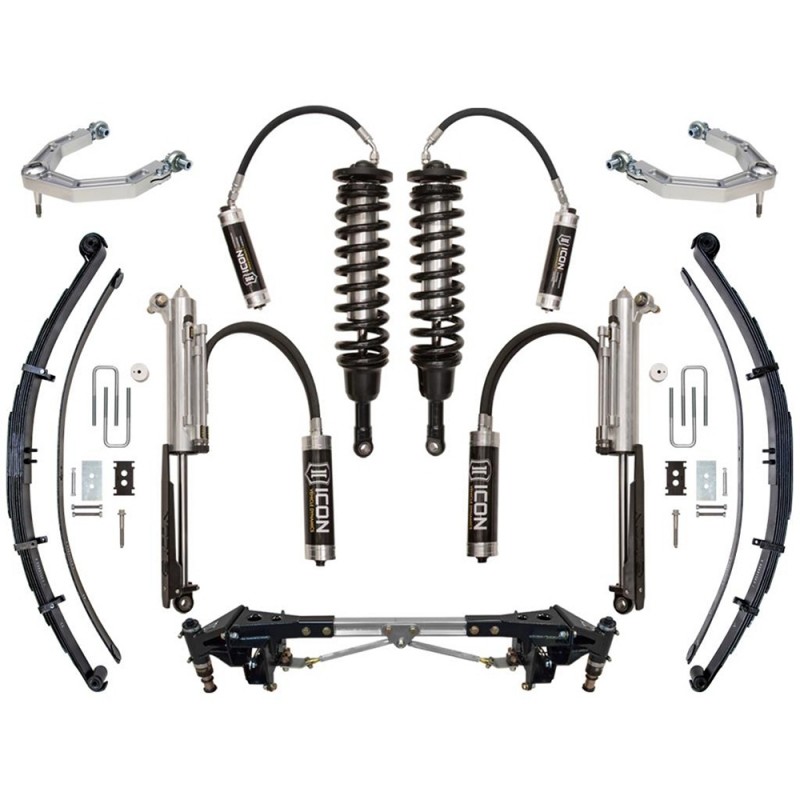

ICON Vehicle Dynamics 2010-2014 FORD RAPTOR STAGE 4 SUSPENSION SYSTEM

Part no: FRDK-K93054

THIS ITEM IS OUT OF STOCK

We're sorry! This product is out of stock. Need help finding a similar product?
Give us a call!! 1-877-553-5337 or Chat with one of our Jeep Experts.

$12,828.40
Make sure it fits!

This product fits only specific vehicles.

Select Your Vehicle

Product Details

  • Key Features of the Raptor Front 3.0 Coilover Shock:
  • Com 12 PTFE Lined Bearings Ensure Maximum Strength and Durability
  • Oversized 1 Heavy Duty CNC Machined Shock Shafts
  • Extended Droop Travel and Increased Overall Performance on and off road
  • Key Features of the Raptor Upper Control Arms:
  • 6061 Billet Aluminum
  • Precision CNC Machined
  • Patent Pending Delta Joint
  • RSMX PTFE Lined 7/8 Rod Ends
  • Easily Adjustable on the Vehicle for Perfect Wheel Alignments
  • 17-4 Stainless Steel Taper Adapter Pin Provides OEM Like Fitment
  • 3.0 OEM Replacement Remote Reservoir Compression Adjustable Front Coilover Shocks
  • O-ring sealed dust cover
  • Key Features of Hydraulic Bump Stop System:
  • Designed for increased leaf spring clearance so there is no loss in up travel with stock or aftermarket springs
  • Easy bolt on installation without having to remove the truck bed
  • 6061 Solid billet cross bar that is polished & anodized
  • Bump stop striker pad does not require leaf spring disassembly
  • Comfortable on road manners with sufficient damping capability under extreme load
  • Hydro-pneumatic bump stop increases bump energy capacity
  • Velocity sensitive Hydro-pneumatic bump stop increases the amount of energy absorbed the faster it is hit
  • Reduces rear end kick and improves overall performance
  • Internal Hydraulic Bump Zone Designed for Maximum G-out Control in the Last 40% of Travel
  • Clamshell brackets strengthen frame in critical areas preventing frame damage from extreme off road use
  • Cross member and tension rods stabilize frame rails and prevent twisting under hard impacts
  • Increases frame rigidity and improves overall vehicle dynamics
  • Industry first billet cross beam
  • Pre-tuned and Nitrogen charged for most Ford Raptors
  • Integrated adjustability for future ICON Raptor specific products
  • Key Features of the Raptor RXT Multi-Rate Leaf Spring:
  • 3 User-adjustable spring rates for unique setups
  • Triple military wrap front eyelet and rear half wrap for increased durability
  • Rebound leaf reduces severe axle wrap
  • Easy-to-Adjust High Resolution Compression Adjuster Offers Fine Tuning Adjustments For All Types of Terrains
  • Tip inserts and leaf separators to reduce friction and improve ride comfort
  • OE style bonded rubber bushings that are maintenance free and do not squeak
  • Bump stop extensions included for use when no aftermarket bump stop kit is installed
  • New Ford OE front spring eye bolts included for easy removal and re-installation of springs
  • Key Features of the Raptor RXT Rear 3.0 Bypass Shock:
  • 3.0 RXT 3 tube bypass rear shock with 3.0 remote reservoir
  • Unique side-mounted upper eyelet allows for increased up-travel while utilizing factory mounting location
  • Recirculating Dual Hose Reservoir (Patent Pending) keeps shock temperatures low by pumping heat to the reservoir for increased dissipation
  • Anti-Wobble Link (Patent Pending) keeps bypass tubes clear of leaf spring and tire
  • Easy-to-Adjust detented adjustment knobs offer quick adjustability without the use of tools
  • Direct Bolt in to OEM Location and Optimum Reservoir Positioning for Superb Heat Dissipation and protection
  • High resolution bypass valves designed for noticeable fine tune adjustments in rebound and compression
  • High flow CNC machined welded bypass blocks designed to increase fluid flow for enhanced performance & high definition tuning
  • Replaceable bypass tubes that can easily be replaced if damaged
  • Direct bolt in to OEM location with bypass adjustment knobs easily accessible for tuning adjustment
  • Special engineered damped valve seats for quiet and precise operation without the standard bypass loud clicking noise you will find with other brands
  • Multi stage cad plated finish with polished and anodized top cap / rod ends
  • Protective shin guards standard with every kit
  • Nitrogen Charged 6063-T832 Aluminum 10 Remote Reservoirs
  • Adjustable Ride Height from 1 3 of Lift
  • ICON Engineered Eibach Springs Offer Increased Travel and Performance
Read more

Product Info

Description

The Ford SVT Raptor is an extremely capable truck that has captured the attention of the off-road community over the past few years. Since the Raptors release ICON Vehicle Dynamics engineers have pushed this vehicle to extremes in order to develop the most comprehensive suspension components on the market. From the brutal deserts of the Southwest, to the deep snow of Michigans U.P., to the wooded trails of the East coast, ICON suspension systems have been put to the test and performed flawlessly. Unable to leave well-enough alone, ICON is once again aiming to raise the bar in Raptor performance with the introduction of the RXT Rear Suspension System. Through a combination of in-house R&D and close collaboration with several Raptor enthusiast groups, ICON has spent the better part of the last year further identifying limiting factors in OE components and looking to further extrapolate performance out of this vehicle in complete bolt on fashion.

Product Details

  • Key Features of the Raptor Front 3.0 Coilover Shock:
  • Com 12 PTFE Lined Bearings Ensure Maximum Strength and Durability
  • Oversized 1 Heavy Duty CNC Machined Shock Shafts
  • Extended Droop Travel and Increased Overall Performance on and off road
  • Key Features of the Raptor Upper Control Arms:
  • 6061 Billet Aluminum
  • Precision CNC Machined
  • Patent Pending Delta Joint
  • RSMX PTFE Lined 7/8 Rod Ends
  • Easily Adjustable on the Vehicle for Perfect Wheel Alignments
  • 17-4 Stainless Steel Taper Adapter Pin Provides OEM Like Fitment
  • 3.0 OEM Replacement Remote Reservoir Compression Adjustable Front Coilover Shocks
  • O-ring sealed dust cover
  • Key Features of Hydraulic Bump Stop System:
  • Designed for increased leaf spring clearance so there is no loss in up travel with stock or aftermarket springs
  • Easy bolt on installation without having to remove the truck bed
  • 6061 Solid billet cross bar that is polished & anodized
  • Bump stop striker pad does not require leaf spring disassembly
  • Comfortable on road manners with sufficient damping capability under extreme load
  • Hydro-pneumatic bump stop increases bump energy capacity
  • Velocity sensitive Hydro-pneumatic bump stop increases the amount of energy absorbed the faster it is hit
  • Reduces rear end kick and improves overall performance
  • Internal Hydraulic Bump Zone Designed for Maximum G-out Control in the Last 40% of Travel
  • Clamshell brackets strengthen frame in critical areas preventing frame damage from extreme off road use
  • Cross member and tension rods stabilize frame rails and prevent twisting under hard impacts
  • Increases frame rigidity and improves overall vehicle dynamics
  • Industry first billet cross beam
  • Pre-tuned and Nitrogen charged for most Ford Raptors
  • Integrated adjustability for future ICON Raptor specific products
  • Key Features of the Raptor RXT Multi-Rate Leaf Spring:
  • 3 User-adjustable spring rates for unique setups
  • Triple military wrap front eyelet and rear half wrap for increased durability
  • Rebound leaf reduces severe axle wrap
  • Easy-to-Adjust High Resolution Compression Adjuster Offers Fine Tuning Adjustments For All Types of Terrains
  • Tip inserts and leaf separators to reduce friction and improve ride comfort
  • OE style bonded rubber bushings that are maintenance free and do not squeak
  • Bump stop extensions included for use when no aftermarket bump stop kit is installed
  • New Ford OE front spring eye bolts included for easy removal and re-installation of springs
  • Key Features of the Raptor RXT Rear 3.0 Bypass Shock:
  • 3.0 RXT 3 tube bypass rear shock with 3.0 remote reservoir
  • Unique side-mounted upper eyelet allows for increased up-travel while utilizing factory mounting location
  • Recirculating Dual Hose Reservoir (Patent Pending) keeps shock temperatures low by pumping heat to the reservoir for increased dissipation
  • Anti-Wobble Link (Patent Pending) keeps bypass tubes clear of leaf spring and tire
  • Easy-to-Adjust detented adjustment knobs offer quick adjustability without the use of tools
  • Direct Bolt in to OEM Location and Optimum Reservoir Positioning for Superb Heat Dissipation and protection
  • High resolution bypass valves designed for noticeable fine tune adjustments in rebound and compression
  • High flow CNC machined welded bypass blocks designed to increase fluid flow for enhanced performance & high definition tuning
  • Replaceable bypass tubes that can easily be replaced if damaged
  • Direct bolt in to OEM location with bypass adjustment knobs easily accessible for tuning adjustment
  • Special engineered damped valve seats for quiet and precise operation without the standard bypass loud clicking noise you will find with other brands
  • Multi stage cad plated finish with polished and anodized top cap / rod ends
  • Protective shin guards standard with every kit
  • Nitrogen Charged 6063-T832 Aluminum 10 Remote Reservoirs
  • Adjustable Ride Height from 1 3 of Lift
  • ICON Engineered Eibach Springs Offer Increased Travel and Performance
For California residents: Proposition 65 Warning

Additional Info

SKUFRDK-K93054
Manufacturer Part NumberK93054
Variant ID4123499
BrandIcon Vehicle Dynamics
Part TypeSuspension Lift Kit
SKU AliasesK93054

What It Fits

YearsMakeModel
2010-2014FordF150
