EVO Rear Double ThrowDown EVOLever System (with Coilover and Bypass) by EVO Manufacturing

Important Notes:

• High Clearance Fenders Recommended
• Exhaust modifications required

Description:

The rear EVO Double ThrowDown System is engineered for the guys who like to go fast. This system utilizes a coilover just like our EVOLever and has all the same added benefits, as well as an additional bypass shock each corner. With the addition of a bypass shock you have full external adjustability of the damping and "zones" within the shock stroke that allow the system to be position sensitive. This system gives you 14? of positions sensitive damping without the need for cutting holes in the body of your Jeep. Allows the uses of long travel coilover and external bypass shocks in the rear of your JK without the need for doing any major cutting. Absolutely no cutting of the body. Optimizes Long Arm suspension system, from every manufacturer without modification. (Rancho Long Arm/Rock Krawler needs modification). Offers the maximum amount of ground clearance with 14? travel. All key components fully protected and above axle at all times. Adjustable ride height Four Ply limit strap included. 3/4 inch chromoly heim joints.

Product Details:

• Fits all Jeep Wrangler's 07+, 2 Door and 4 Door
• Offers up to 14 of vertical wheel travel.

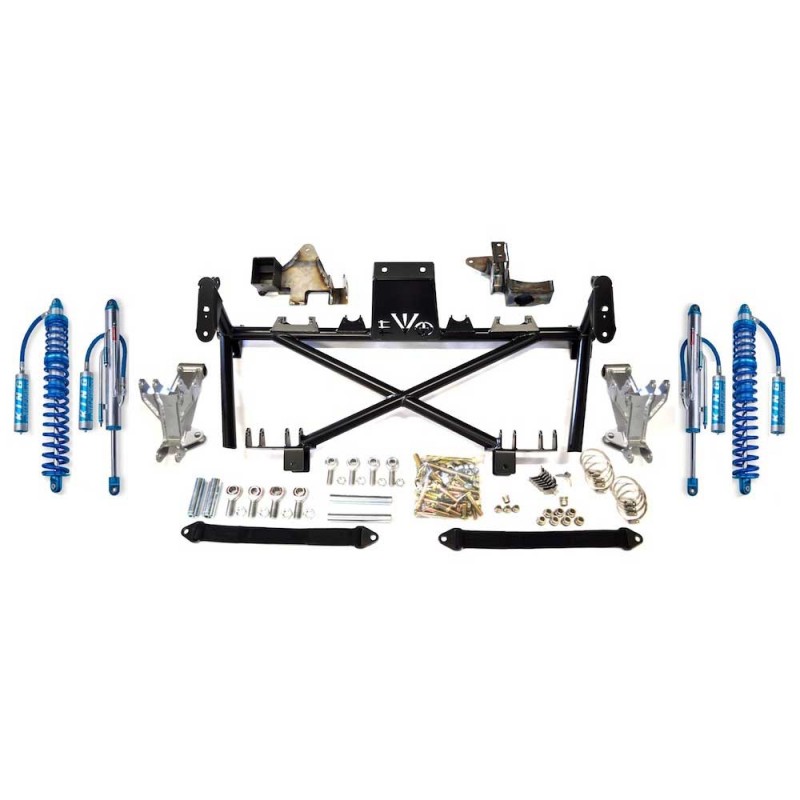

Parts Included:

• (1) Subframe
• (2) Arms
• (2) ByPass Shocks
• Brackets and Hardware
