Product Details
Important Notes:
- Bumper comes Raw/Bare Steel & will need to be Powder Coated
- D-Rings NOT Included
- Fog Lights NOT included
- Bumper comes standard with 3.5" Fog Light CUT OUTS only
- D-Ring Shackle Mounts are welded inside/outside for strength
- You DO NOT need to cut your Crossmember
- Little to NO modifications are needed
- BOLTS directly onto frame
Fits:
- 2005-2007 Jeep Grand Cherokee WK
Description:

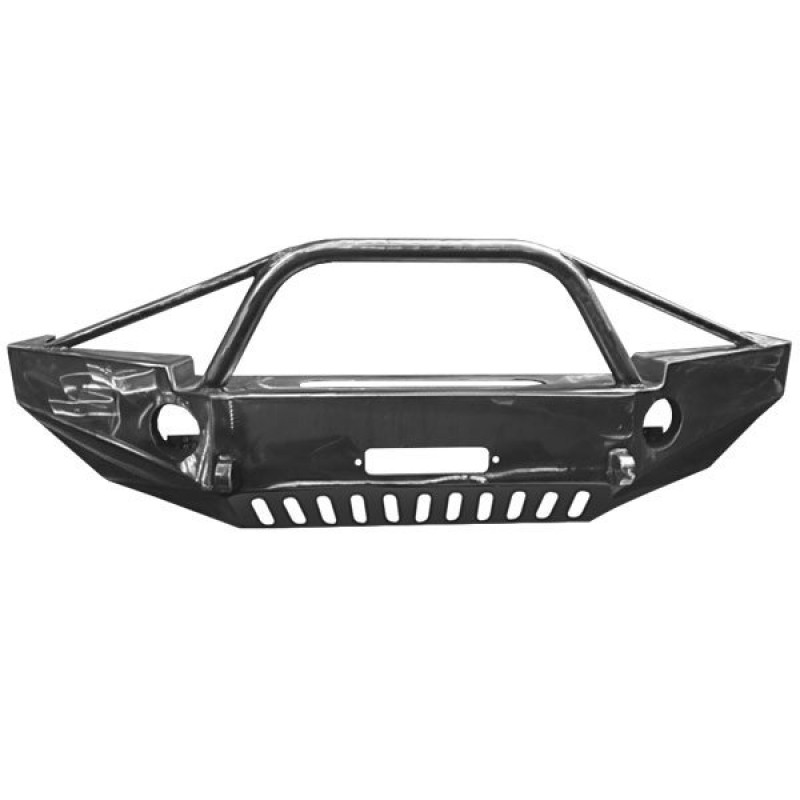

Logans Metal brings to you this aftermarket bare steel front winch bumper made with 1/4 removable brackets.
The outer shell is lasered from A36 3/16" P+O steel and then formed. The D-Ring shackle mounts are made from 1"x2" hot rolled steel. They are welded inside and outside for extreme strength. 3/4" Shackles are needed to fit into the mounts. D-Rings are sold separately.
You Do NOT need to cut your crossmember to fit this bumper. Little to NO Modification is needed as this bolts directly into the frame and replaces the mounts to hold the Grill on. (Grade 8 Mounting Hardware is included)
WINCH MOUNTING:
Mounting holes have been pre-drilled for most standard winches up to 9500 lbs. with removable solenoid. Winch bolt pattern is 4.5" x 10"
BUMPER MOUNTING:
Bumpers are made with laminated 1/4" (1/4" + 1/4") thick removable brackets with Grade 8 Nuts welded on the brackets for install. They come with square sandwich plates that will reinforce through the frame so that little to no modification is needed. Sometimes the holes need elongated in the frame of the Jeep due to factory tolerances.
Product Details:
- Made with 1/4 removable brackets
- Lasered outer shell A36 3/16" P+O steel
- 1" x 2" D-Ring shackle mounts Hot rolled steel & welded for extreme strength
- 3/4" D-Ring Mounts
- Comes with 3.5" aftermarket Fog Light cut outs (does not fit factory fog lights)
- Hardware included
Parts Included:
- (1) Grand Cherokee WK - Front Winch Bumper, Bare Steel
- Mounting Brackets for Front WK Bumper
- Cover Plate for Winch
- Grade 8 Mounting Hardware
Dimensions:
- Length: 72"
- Width: 24"
- Height: 20"
- Weight: 117 lbs
Years Covered:
2005, 2006 and 2007
Additional Information
| SKU | LMP-WKF050704 |
|---|---|
| Name | Logans Metal Front Winch Bumper with Pre Runner Bar / Brush Guard |
| Application | 2005-2007 Jeep Grand Cherokee WK |
| Brand | Logans Metal Products |
| SKU Aliases | No |
| Part Type | Front Bumper |
| Price | $959.00 |
| Shipping Surcharge | $109.99 |
| Make Model | Jeep-Grand Cherokee WK |
