- Sold as a pair
Product Info
Important Notes
Description

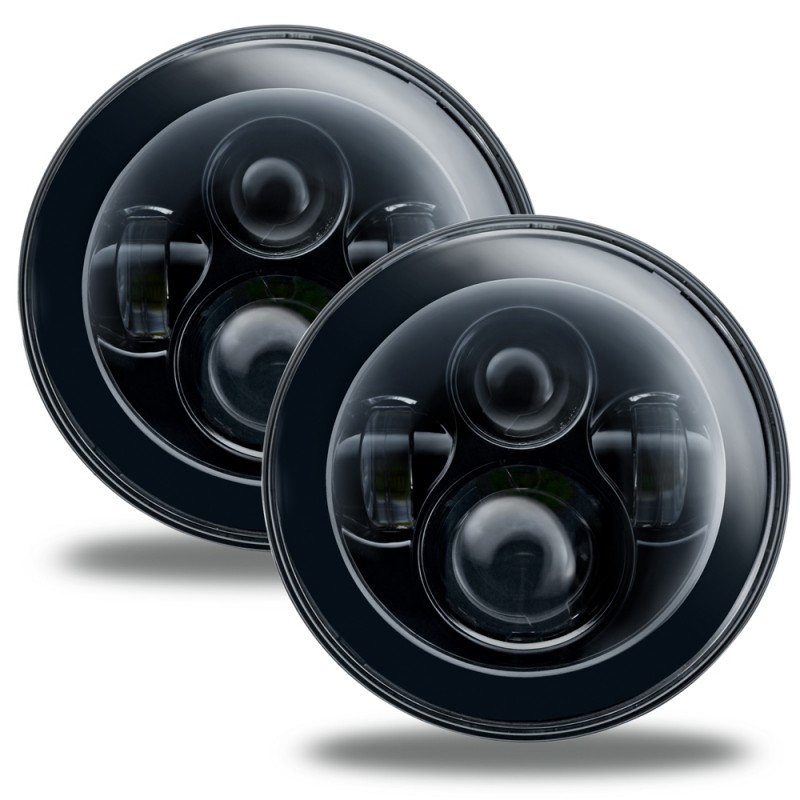

The Ultimate LED replacement headlight option for any vehicle with 7" Sealed Beam lamps. The rugged design is perfect for your Jeep Wrangler, Off-Road Vehicle, Buggies, or Classic Car/Truck. Installation is very easy with the included H4 and H13 "Plug and Play" connectors. Each set is covered by a 2-Year free Replacement Warranty.
Key Features
- Improvements in brightness and reliability by adding a constant current LED driver to the main circuit board inside of the lamp to control the halos.
- No need for Anti-Flicker Wiring Adapters: The new SMART Integrated Can-Bus system automatically adjusts- preventing flicker issues.
- Increased Reliability: By conditioning the power going into the LEDs this prevents degradation which can shorten the overall lifespan of the product.
- Wider Input Voltage Range: The new SMD Halos can operate on a very wide voltage range from 12V-24V so that voltage spike can not damage the LEDs.
- Brighter LED Halos: by moving the heat load of the resistors off the PCB we are able to increase the number of LEDs on the circuit board without thermal issues.
- LED chips upgraded from a Cree LED to a Phillips Luxeon ZES chip. They deliver a very high efficacy 130LM/W ratio while having lower thermal output.
Product Details
- Low Beam Wattage: 30W Normal/36W Max
- Low Beam Lumens: 2200 Lumens/3600 Raw Lumens
- High Beam Wattage: 40W Normal/48W Max
- High Beam Lumens: 3600 Lumens/4800 Raw Lumens
- Color Temperature: 6000K (Cool White Color)
- Input Voltage of Light: 12-24V DC
- Input Voltage of Halo (If Included): 12V DC
- Current Draw: 2.50 Amps @ 12V DC / 1.30 Amps @ 24V DC
- Optional: ORACLE Halo Rings Pre-Installed
- Premium Performance Phillips Luxeon ZES LEDs
- Die-Cast Housing with Corrosion Resistant Coating
- Heavy Duty Solid State Electronics
- Hard-coated Polycarbonate Lens
- Wide Beam Pattern with Sharp Cut-Off Line
- Easy Plug & Play Installation
- 2 Year Warranty
- DOT and SAE Certified
Parts Included
- (2) Oracle 7" High Powered LED Headlights, Black Bezel
Additional Info
| SKU | OL-5769-504 |
|---|---|
| Manufacturer Part Number | 5769-504 |
| Variant ID | 7091189 |
| Brand | Oracle |
| Part Type | Headlights |
| SKU Aliases | 5769-504 |
| Enable Quick Ship | Yes |
What It Fits
| Years | Make | Model |
|---|---|---|
| 2007-2018 | Jeep | Wrangler JK |
| Years | Make | Model |
|---|---|---|
| 2007-2018 | Jeep | Wrangler JK Unlimited |
