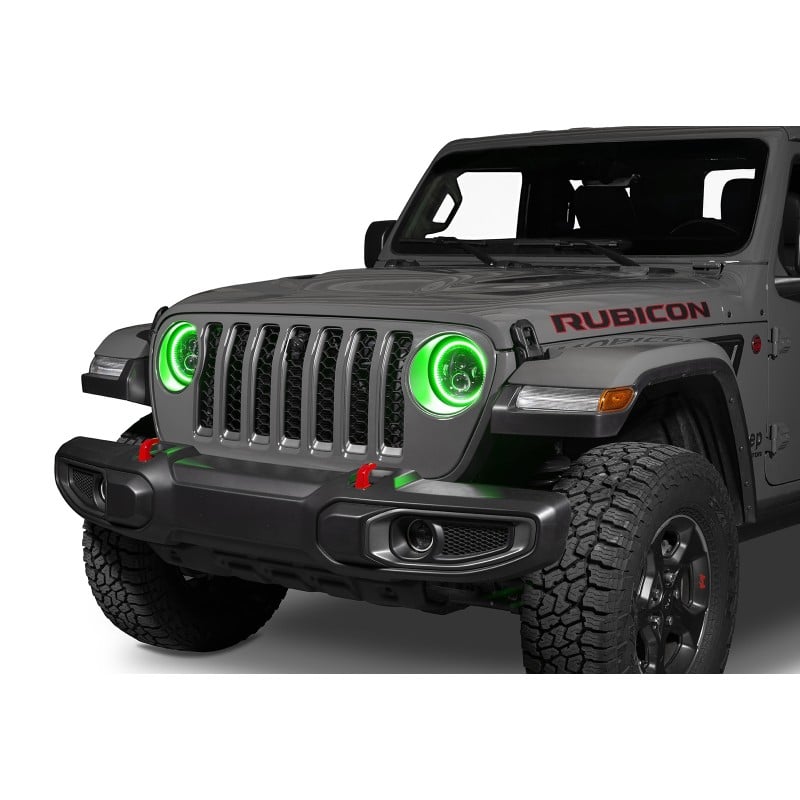

ORACLE 7" High Powered LED Headlights - Green

Part no: OL-5769-004

$299.00
In stock
    * IMPORTANT
This is a custom made-to-order product and is not returnable once your order has been placed..

Make sure it fits!

This product fits only specific vehicles.

Select Your Vehicle

Product Details

  • Low Beam Wattage: 30W Normal/36W Max
  • Low Beam Lumens: 2200 Lumens/3600 Raw Lumens
  • High Beam Wattage: 40W Normal/48W Max
  • High Beam Lumens: 3600 Lumens/4800 Raw Lumens
  • Color Temperature: 6000K (Cool White Color)
  • Input Voltage of Light: 12-24V DC
  • Input Voltage of Halo (If Included): 12V DC
  • Current Draw: 2.50 Amps @ 12V DC / 1.30 Amps @ 24V DC
  • Optional: ORACLE Halo Rings Pre-Installed
  • Premium Performance Phillips Luxeon ZES LEDs
  • Die-Cast Housing with Corrosion Resistant Coating
  • Heavy Duty Solid State Electronics
  • Hard-coated Polycarbonate Lens
  • Wide Beam Pattern with Sharp Cut-Off Line
  • Easy Plug & Play Installation
  • 2 Year Warranty
  • DOT and SAE Certified
Read more

Product Info

Important Notes

  • Sold as a pair
  • Uses standard, H4, or H13 wiring connection and works with both 12V and 24V systems
  • Includes H13 and H4 Connectors

Description

The Ultimate LED replacement headlight option for any vehicle with 7" Sealed Beam lamps. The rugged design is perfect for your Jeep Wrangler, Off-Road Vehicle, Buggies, or Classic Car/Truck. Installation is very easy with the included H4 and H13 "Plug and Play" connectors. Each set is covered by a 2-Year free Replacement Warranty.

Key Features

  • Improvements in brightness and reliability by adding a constant current LED driver to the main circuit board inside of the lamp to control the halos.
  • No need for Anti-Flicker Wiring Adapters: The new SMART Integrated Can-Bus system automatically adjusts- preventing flicker issues.
  • Increased Reliability: By conditioning the power going into the LEDs this prevents degradation which can shorten the overall lifespan of the product.
  • Wider Input Voltage Range: The new SMD Halos can operate on a very wide voltage range from 12V-24V so that voltage spike can not damage the LEDs.
  • Brighter LED Halos: by moving the heat load of the resistors off the PCB we are able to increase the number of LEDs on the circuit board without thermal issues.
  • LED chips upgraded from a Cree LED to a Phillips Luxeon ZES chip. They deliver a very high efficacy 130LM/W ratio while having lower thermal output.

    Product Details

    • Low Beam Wattage: 30W Normal/36W Max
    • Low Beam Lumens: 2200 Lumens/3600 Raw Lumens
    • High Beam Wattage: 40W Normal/48W Max
    • High Beam Lumens: 3600 Lumens/4800 Raw Lumens
    • Color Temperature: 6000K (Cool White Color)
    • Input Voltage of Light: 12-24V DC
    • Input Voltage of Halo (If Included): 12V DC
    • Current Draw: 2.50 Amps @ 12V DC / 1.30 Amps @ 24V DC
    • Optional: ORACLE Halo Rings Pre-Installed
    • Premium Performance Phillips Luxeon ZES LEDs
    • Die-Cast Housing with Corrosion Resistant Coating
    • Heavy Duty Solid State Electronics
    • Hard-coated Polycarbonate Lens
    • Wide Beam Pattern with Sharp Cut-Off Line
    • Easy Plug & Play Installation
    • 2 Year Warranty
    • DOT and SAE Certified
    For California residents: Proposition 65 Warning

    Parts Included

    • (2) Oracle Off-Road 7" High Powered LED Headlights - Black Bezel - Green SMD Halo Ring
    • (2) H13 / H4 Connectors with CANBUS Protection

    Additional Info

    SKUOL-5769-004
    Manufacturer Part Number5769-004
    Variant ID7091188
    BrandOracle
    Part TypeHeadlights
    SKU Aliases5769-004
    ColorGreen
    Enable Quick ShipYes

    What It Fits

    YearsMakeModel
    1959-1983JeepCJ5
    1959-1975JeepCJ6
    1976-1986JeepCJ7
    1981-1985JeepCJ8 Scrambler
    1945-1958JeepWillys
    YearsMakeModel
    2007-2018JeepWrangler JK
    2007-2018JeepWrangler JK Unlimited
    1997-2006JeepWrangler TJ
    2004-2006JeepWrangler TJ Unlimited
