Rock Krawler 4.5" X Factor Long Arm Suspension Lift Kit - Stage 1 with RRD Shocks - JK 4 Door

Part no: ROCK-JK45XFLA-4S1

$4,666.53
Out Of Stock
Make sure it fits!

This product fits only specific vehicles.

Select Your Vehicle

Product Details

  • Excellent Highway Ride and Handling
  • Unbelievable Off-Road Ability
  • Independent 3 Link Conversion Front and Rear (100% Bind Free Suspension)
  • Best in Class Ground Clearance and Cross Over Angles
  • Adjustable Rear Anti-Squat
  • In Vehicle Adjustable Front Upper Arm making Alignment a Snap
  • High Steer Upgrade w/ Off-Road Pro Drag Link
  • Triple Rate Coil Springs
  • PRO Front Sway Bar Disconnects/Extended Links
  • PRO Rear Extended Sway Bar Links
  • Repositions the Rear Axle Back up to 1" Over Stock
  • Sport Tuned 2.25 RRD Racing Shocks
  • 37" Tires (OEM Fenders)
  • Up to 40" Tires (Flat Fenders)
  • Rock Krawler's Abuse Proof Lifetime Warranty on All Hard Parts
  • Upgradeable to any other Rock Krawler System
Read more

Product Info

Important Notes

  • Welding of the Rear Cradle, Rear Third Link Mount, Front and Rear Long Arm Mounts is required.
  • Removal of the OEM lower control arm mounts front and rear is required.
  • Removal of the front upper control arm mount on the driver side is required.
  • Minor exhaust rerouting required before the collector on the driver's side. This is Rock Krawler recommendsed to be done prior to the suspension system being installed.
  • Rock Krawler recommends installing limiting straps to avoid over extension of suspension components after vehicle is all set up.
  • Rock Krawler recommends 4.5" of back spacing on rims for 33" and 35" tall tires.
  • Rock Krawler recommends 3.5" of back spacing on rims for 37"/38" tall tires.
  • The rear upper third link is designed around standard low pinion rear axles. When ordering for high pinion rear axles please contact us directly so we can ensure proper fitment as best as possible.

Description

The Rock Krawler JK 4.5" X-Factor Long Arm System is the best performing trail suspension for JK owners looking to run 37" tall tires with stock fenders or 38"/40" tall tires with flat fenders. This system features the Rock Krawler Independent Three Link Conversion front and rear. The Independent Three Link's 100% bind free design has proven its self to be the best choice for those looking for maximum articulation while maintaining a factory like highway ride and tight handling.

This system features the best in class cross over angles and ground clearance. The rear suspension features adjustable anti-squat so you can dial in your JK's suspension to your liking. All of the high clearance lower control arms are made from 2" O.D. 7/16 Wall DOM alloy steel and built for abuse. Like all other JK X-Factor Systems the rear axle has been moved back 1" to allow for greater clearance between the tire and factory sliders for Rubicon Owners. This system is completely upgradeable to any other Rock Krawler Wrangler JK System and comes with our exclusive Abuse Proof Lifetime Warranty on all hard parts!

Product Details

  • Excellent Highway Ride and Handling
  • Unbelievable Off-Road Ability
  • Independent 3 Link Conversion Front and Rear (100% Bind Free Suspension)
  • Best in Class Ground Clearance and Cross Over Angles
  • Adjustable Rear Anti-Squat
  • In Vehicle Adjustable Front Upper Arm making Alignment a Snap
  • High Steer Upgrade w/ Off-Road Pro Drag Link
  • Triple Rate Coil Springs
  • PRO Front Sway Bar Disconnects/Extended Links
  • PRO Rear Extended Sway Bar Links
  • Repositions the Rear Axle Back up to 1" Over Stock
  • Sport Tuned 2.25 RRD Racing Shocks
  • 37" Tires (OEM Fenders)
  • Up to 40" Tires (Flat Fenders)
  • Rock Krawler's Abuse Proof Lifetime Warranty on All Hard Parts
  • Upgradeable to any other Rock Krawler System
For California residents: Proposition 65 Warning

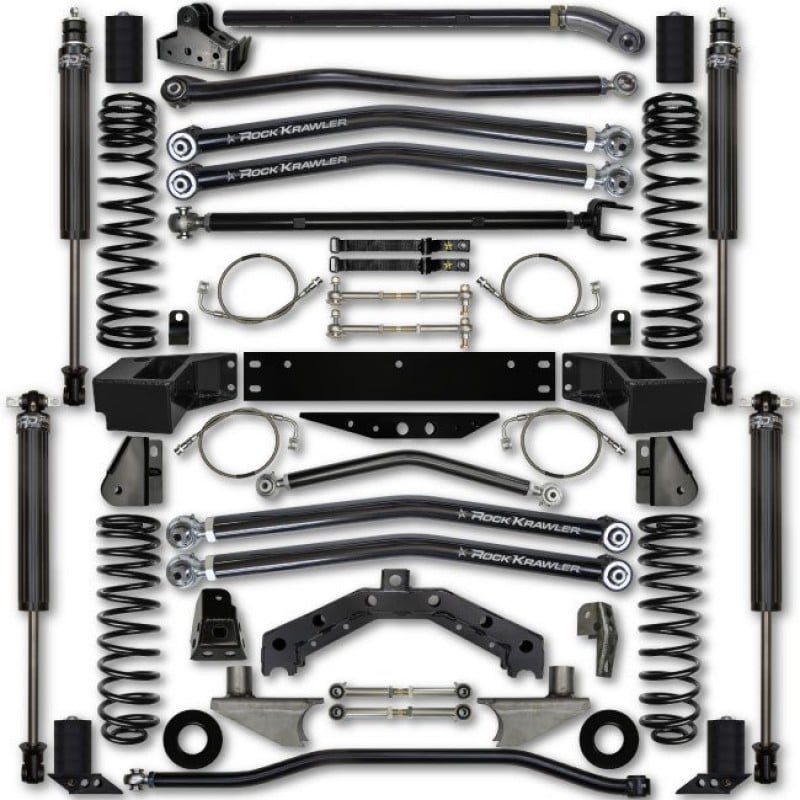

Parts Included

  • (4) Triple rate coil springs
  • (4) 2.25 RRD racing shocks
  • (4) High clearance-adjustable lower control arms made of 2.0" O.D. 7/16 Wall DOM alloy steel
  • (2) Double adjustable track bars made from 1.5" solid alloy steel with Anti-Wobble joints
  • (4) Long arm mounts and cross member made from 1/4" thick laser cut steel
  • (2) High misalignment adjustable upper control arms made from 1.625" solid alloy steel
  • (1) Rear independent 3rd link mount made of 1/4" thick laser cut steel
  • (1) Weld on rear axle truss with adjustable anti-squat
  • (1) Front and rear track bar relocation bracket made from thick laser cut steel
  • (1) Off-Road pro drag link
  • (1) Adjustable front sway bar disconnects
  • (2) Rear extended sway bar links
  • (4) Long travel stainless steel brakes
  • (1) Pair of sway bar straps
  • (2) Rear coil spring degree wedges
  • (2) Front spring retainer clips
  • (4) Extended bump stop pairs
  • Includes hardware and detailed instructions

Additional Info

SKUROCK-JK45XFLA-4S1
Manufacturer Part NumberRK06013/RK04900/RK02026B/RK05071/RK04389/RRD02293/RRD02293/RRD02294/RRD02294/RK07123/RK06014/RK02024B/RK02234/RK02234/RK02234/RK02234/RK04168/RK04899
Variant ID7231589
BrandRock Krawler
Part TypeSuspension Lift Kit
SKU AliasesROCK-RK06013, ROCK-RK06014, ROCK-RK02024B, ROCK-RK02234, ROCK-RK04168, ROCK-RK04899, ROCK-RK04900, ROCK-RK02026B, ROCK-RK05071, ROCK-RK04389, ROCK-RRD02293, ROCK-RRD02294, ROCK-RK07123, JK45XFLA-4S1, RK06013/RK04900/RK02026B/RK05071/RK04389/R
FinishBare
Lift Height Range4-5 in.
Lift Kit Height Range4-5 in.

What It Fits

YearsMakeModel
2007-2018JeepWrangler JK Unlimited
