- Sport and Sahara with Full OEM Fenders: 35" Tall Tires (2" Bump Stop Height Recommended)
- Sport and Sahara with Trimmed or High Lined OEM Fenders: 37" Tall Tires (3" Bump Stop Height Recommended)
- Rubicon with Full OEM Fenders: 37" Tall Tires (2" Bump Stop Height Recommended)
- Rubicon with Trimmed or High Lined OEM Fenders: 38" Tall Tires (3" Bump Stop Height Recommended)
- Rock Krawler recommends 4.5" of back spacing on rims for 12.5" wide tires.
- For 2012 and newer models an aftermarket front driveshaft with 2" O.D. steel tubing is recommended, but not required
Product Info
Important Notes
Description
The Rock Krawler JK 2.5" Adventure Series Mid Arm System was designed for those who want an easy bolt-in installation, excellent on-road ride and the durability and the off-road performance you expect from Rock Krawler Suspension. This kit features Rock Krawler's proven, service free control arm joints. These joints are the industry leader in service free control arm joints using innovative technology to provide the best possible ride in your Wrangler. The Adventure Series fixed lower control arms offer a total of 70 degrees of misalignment that greatly reduces the bind inherent in JK factory lowers. Rock Krawler's industry leading triple rate coils give you 2.5"es of lift to clear up to 38-inch tires, depending on model and fenders being used, and improve the on-road ride over the factory linear rate springs. All Rock Krawler JK systems include correction pads that help minimize the spring bow inherent in the factory set up. The provided track bar geometry corrections, both front and rear, lets you perfectly center the axles so there is no compromise in handling.
Front Shock Recommendation with 2" bump stops - 16" Collapsed to 28" Extended
Rear Shock Recommendation with 2 " bump stops - 16" Collapsed to 26" Extended
Front Shock Recommendation with 2" bump stops - 16" Collapsed to 28" Extended
Rear Shock Recommendation with 2 " bump stops - 16" Collapsed to 26" Extended
Product Details
- Complete Bolt in System (Exc. Shocks)
- Excellent Highway Ride and Handling
- Improved Off-Road Ability
- High Clearance Front Lower Control Arms
- Pinion Angle Correcting Double Adjustable Rear Upper Arms
- Triple Rate Coil Springs
- Clears 33" or 35" Tires (OEM Fenders)
- Abuse Proof Lifetime Warranty on All Hard Parts
- Upgradeable to any other Rock Krawler System

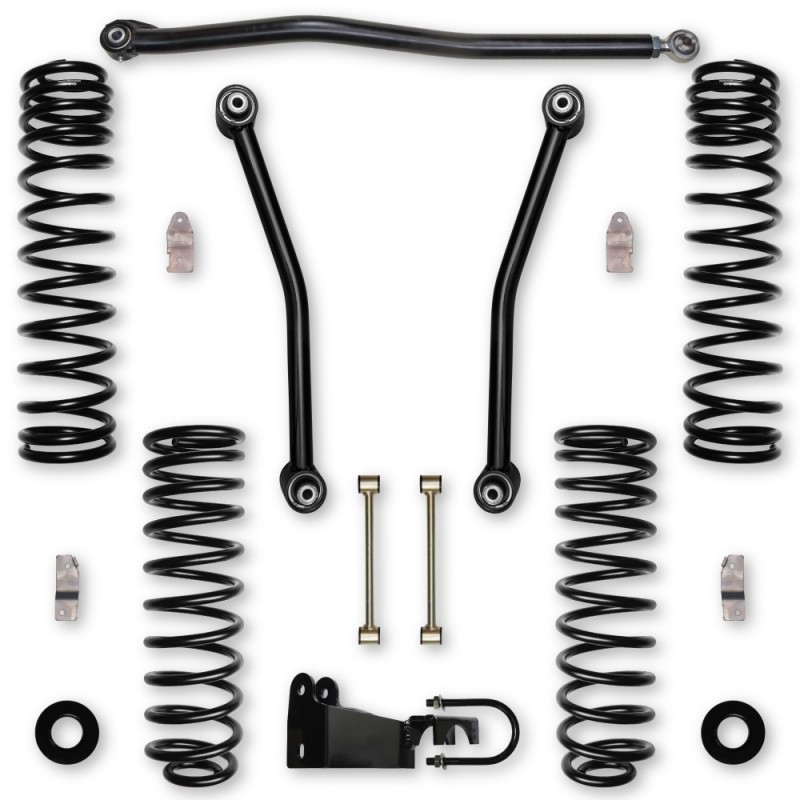

Parts Included
- (4) Triple rate coil springs
- (1) Adjustable 1.5" solid alloy steel front track bar
- (2) High clearance lower control arms made of 1.625" solid alloy steel
- (2) Double adjustable rear upper control arms made from solid alloy steel
- (1) Rear track bar relocation bracket made from thick laser cut steel
- (2) Extended rear sway bar links
- (2) Front brake line relocation bracket
- (2) Rear brake line relocation bracket
Additional Info
| SKU | GMDR-JK25AS-4 |
|---|---|
| Manufacturer Part Number | JK25AS-4 |
| Variant ID | 8129111 |
| Brand | Rock Krawler |
| Part Type | Suspension Lift Kit |
| SKU Aliases | JK25AS-4 |
| Lift Kit Height Range | 2-3 in. |
What It Fits
| Years | Make | Model |
|---|---|---|
| 2007-2018 | Jeep | Wrangler JK Unlimited |
