Product Info
Important Notes
Description

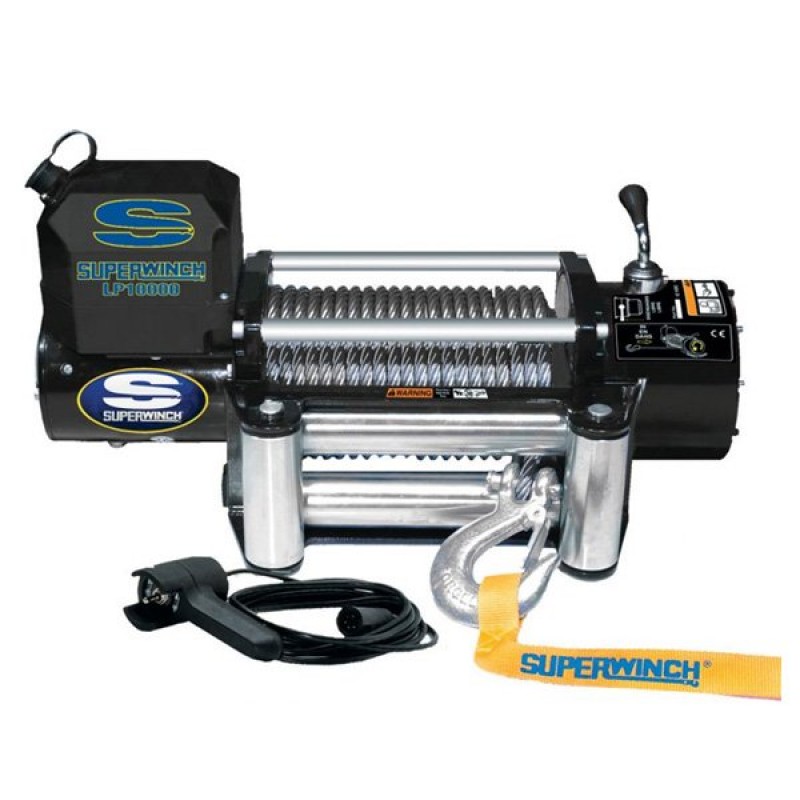

Superwinches New LP10000 10,000lb winch provides reliable, powerful performance for off-road and utility operation while introducing owners to the renowned advantage of the Superwinch brand. Standard features include power in and out, weather resistant motor and solenoid with circuit breaker protection. Automatic Load Holding, mechanical braking. Heavy duty latched hook with rope thimble, powder coated roller fairlead and 12' Long Rubber handheld remote.
The LP 10000 provides reliable, powerful performance for intermediate level off-road and utility applications while introducing owners to the renowned advantages of the Superwinch brand.
This is the big brother to our very popular entry level LP8500; we added a stronger 5.1 HP weather sealed motor, bigger 3/8" wire rope and replaced the steel hawse with a heavy duty 4-way roller fairlead.
Product Details
- Rated Line Pull:10,000 lbs (4,536 kgs)
- Motor: 5.1 HP, Series Wound
- Gearing: 3-Stage Planetary
- Gear Ratio: 235:1
- Solenoid: Weather-Sealed Solenoid and Circuit Breaker Protected
- Clutch: Free-Spooling, Lever Shift
- Brake: Mechanical, Automatic Load Holding
- Rope: Wire Rope 3/8" x 85' (9.5mm x 25.9m)
- Hook: Clevis Hook with Latch
- Fairlead: Heavy Duty, 4-Way Roller
- Remote: Rubber 12' Hand-held
- Dimensions: 21.3" L x 6.3" D x 8.6" H (541 mm L x 160 mm D x 218.4 mm H)
- Drum Diameter: 2.5" (63.5mm)
- Drum Length: 8.8" (224mm)
- Mounting Bolt Pattern: 10 x 4.5 (254mm x 114.3mm)
- Installed Weight: 83 lbs (37.64 kgs)
- Shipping Weight: 90 lbs (40.8 kgs)
- Warranty: Two Year Limited Warranty
- Line Pull: 0 lbs; 90 Amps Motor Draw / 16.0 FPM (4.87 MPM) Line Speed
- Line Pull: 10,000 lbs; 350 Amps Motor Draw / 1.52 FPM (0.46 MPM) Line Speed
Additional Info
| SKU | SW-1510200 |
|---|---|
| Manufacturer Part Number | 1510200 |
| Variant ID | 7245366 |
| Brand | Superwinch |
| Part Type | Winch |
| SKU Aliases | 1510200, SWI1510200 |
| Application | Jeeps & Trucks |
| Power Source | Electric |
| Winch Fairlead Type | Roller |
| Line Type | Steel Cable |
| Winch Rated Line Pull | 8001 lbs. - 10000 lbs. |
| Enable Quick Ship | Yes |
Installation Guide Download
Installation
Installation Guide Download
