- Sold as a kit
- Drag Link is designed to be used in the stock location for up to 3" lift heights. For 3-6" lift heights the drag link should be flipped for a high steer setup
- High Steer setup requires the Drag Link to be relocated to the top of the steering knuckle. Must use in conjunction with a raised front axle side track bar relocation bracket
- High Steer setup requires 16" or larger wheel diameter with a maximum 4-3/4" backspacing or wheel spacer with factory wheel setup
- 4-1/2" back spacing is recommended
Product Info
Important Notes
Description

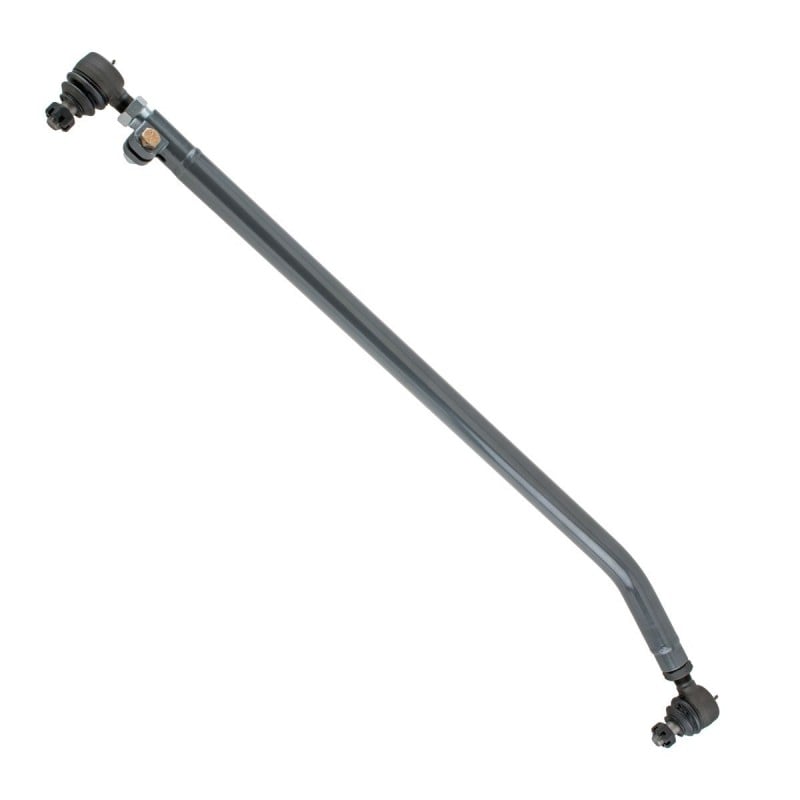

New and Improved Jeep JK Wrangler Heavy Duty Drag Link. Improving upon the success of the previous 8001 JK Drag Link, this version is larger in size and strength and prevents unwanted Drag Link Flop. You will not find a better drag link on the market!
Product Details
- Drag Link bolts right into the factory mounts or can be relocated to the top of the steering knuckle for a high steer setup using included flip adapter (See Notes for high steer requirements)
- No factory drag link components need to be reused
- Includes Synergy HD Metal on Metal Tie Rod Ends with a Single Plane version at the pitman arm side to completely eliminate Drag Link Flop
- Made from 1.5" x .250 wall DOM tubing
- Abrasion-resistant powder coat finish for maximum durability and corrosion resistance
- Synergy Double Adjuster Sleeve allows adjustment of drag link length without removing it from the vehicle
- 100% bolt-on components assures an easy, trouble free installation with the use of basic hand tools
- Synergy Tie Rod and Drag Link both use the same tie rod end thread pitch, so one spare tie rod end (4131-L) can be used in any location in the steering.
Parts Included
- (1) Drag Link
- (1) Rod End Double Adjuster Sleeve
- (1) Pinch Bolt Hardware
- (1) Single Plane Tie Rod End
- (1) Tie Rod End
- (1) Flip Adapter
Additional Info
| SKU | SSM-8000-01 |
|---|---|
| Manufacturer Part Number | 8000-01 |
| Variant ID | 7236786 |
| Brand | Synergy |
| Part Type | Drag Link |
| SKU Aliases | 8000-01, 8001 |
| Enable Quick Ship | Yes |
Installation Guide Download
What It Fits
| Years | Make | Model |
|---|---|---|
| 2007-2018 | Jeep | Wrangler JK |
| Years | Make | Model |
|---|---|---|
| 2007-2018 | Jeep | Wrangler JK Unlimited |
Installation
Installation Guide Download
