- Sold as a kit
- Use thread sealant for proper installation
- Teflon tape is not recommended for installation
- Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs.
- Properly sealed, recommended torque for 1/4" and 3/8" is 16 ~ 18 ft. lbs.
Product Info
Important Notes
Description
VIAIR Dual 444C Onboard Air System for up to 40" Tires is a system with all components needed to install a working structure capable of inflating tires, managing air locking differentials, and more.
Product Details
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI
- Max. Working Pressure: 200 PSI
- Max. Amp Draw: 40 Amps
- Pre-packaged compressed air solution
- All Fittings are NPT rated unless otherwise noted

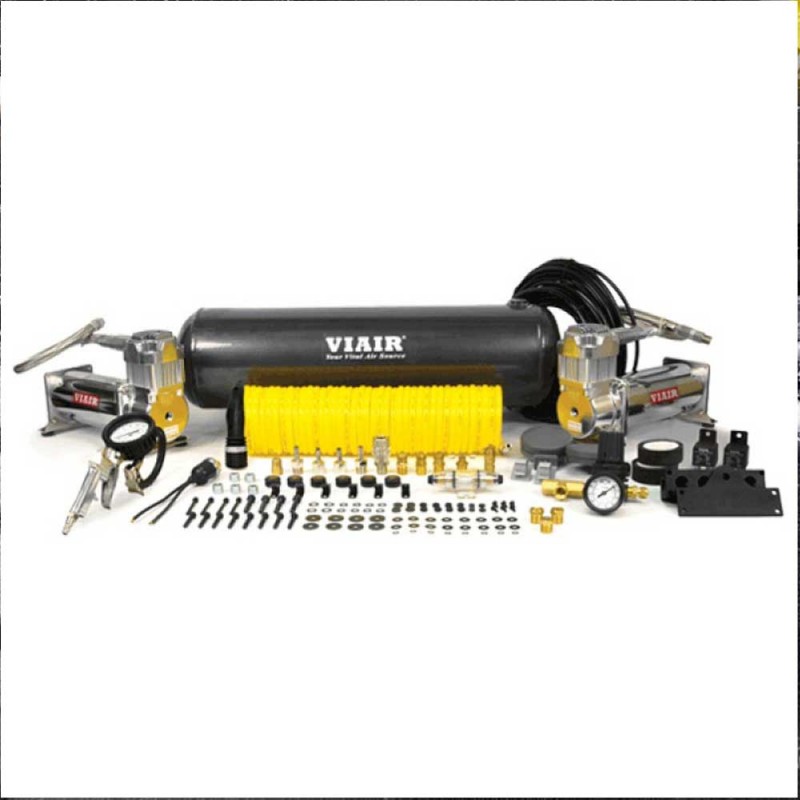

Parts Included
- (1) 2.5 Gallon 200 PSI VIAIR Air Tank
- (2) 444C VIAIR Compressors
- (1) 30ft. Coil Hose with Quick Connects
- (1) Tire Inflation Gun with 200 PSI Gauge
- (1) 0-220 PSI Pressure Regulator
- (1) Sealed Pressure Switch (165 PSI on, 200 PSI off)
- (2) 40-amp Relays
- (1) Inline Fuse Holder
- (1) 1/4 Quick Connect Coupler (M)
- (1) 1/4 250 PSI Safety Valve
- (1) 1/4 Drain Cock
- (2) 1/8 BSP to 1/4 NPT
- (3) 1/4 Compression Fittings
- (2) 15ft. 1/4 Air Line Included
- 5 Pc. 1/4 NPT Plugs Kit
- 6-Port Billet Manifold with Mounting Bracket (1/4)
- Electrical Connections
Additional Info
SKU | VI-20019 |
---|---|
Manufacturer Part Number | 20019 |
Variant ID | 4143301 |
Brand | Viair |
Part Type | Air Compressor Kit |
SKU Aliases | 20019 |
