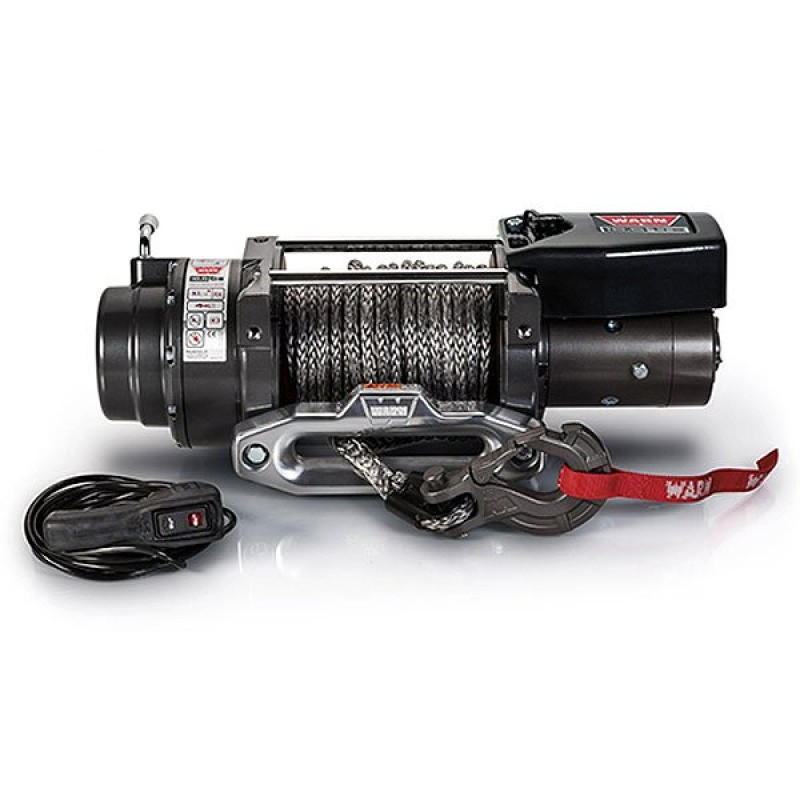

Warn 16.5ti-S Winch with Spydura Pro Synthetic Rope and Polished Aluminum Hawse Fairlead, 16,500 lbs, 12V by Warn

Part no: W97740

Warn 16.5ti-S Winch with Spydura Pro Synthetic Rope and Polished Aluminum Hawse Fairlead, 16,500 lbs, 12V
$2,059.99 + free Shipping
Price match guarantee

Universal product

This product fits all vehicles

Product Details

Important Notes:

  • The rated line pull is 16,500 lbs
  • Read and understand the guide before installation and operation
  • Product warranty void outside USA and Canada

Fits:

  • Universal

Description:

This Warn 16.5ti-S Winch is not only the most powerful truck winch Warn makes, but it's also now available with 80' of 3/8" lightweight, easy-to-handle Spydura Pro synthetic rope. The rope's heat-treated construction provides maximum tensile strength, and the temperature-resistant sleeve on the first layer provides maximum heat protection. This winch also features a thermometric indicator which provides operator feedback during the winching process. It is great for the biggest, heaviest vehicles on or off the pavement.

Product Details:

  • 16,500 lb. capacity
  • Includes 80' of 3/8" Spydura Pro synthetic rope
  • Includes 18,000 lb capacity EPIC hook
  • Thermometric indicator LED provides operator feedback
  • Large-frame winch architecture mounts feet forward
  • Contactor control for the ultimate in reliable electronics
  • Powerful, efficient series-wound motor
  • Durable, smooth three-stage planetary gear train
  • Best-in-class cone brake

Specifications:

  • Rated Line Pull: 16,500 lbs. (7484 kgs) single-line
  • Motor: 12V 4.6 hp Series Wound
  • Electrical Control: Contactor
  • Remote control: Remote switch, 12" (3.7m) lead
  • Geartrain: 3-stage planetary
  • Gear ratio: 315:1
  • Clutch (freespooling): Rotating ring gear
  • Brake: Automatic direct drive cone
  • Drum diameter/length: 3.5 in /8.2 in (9cm/21cm)
  • Weight: Shipping: 104 lbs. (45 kgs); Net Product: 92 lbs. (40kgs)
  • Rope: Spydura Pro Synthetic: 80' x 3/8" (9.5mm x 24.3m)
  • Fairlead: Hawse, polished aluminum
  • Recommended battery: 650 CCA minimum for winching
  • Battery leads: 2 gauge, 72 in. (1.83m)
  • Finish: Argent gray powder coat
  • Warranty: Limited Lifetime Mechanical and 7-year Electrical Warranty to the original purchaser, with proof of purchase, no registration required.

Parts Included:

  • (1) Warn 16.5ti-S Winch with Spydura Pro Synthetic Rope and Polished Aluminum Hawse Fairlead, 16,500 lbs, 12V

Additional Information

SKUW97740
BrandWarn
SKU Aliases 97740
Winch TypeElectric
Line TypeSynthetic
Remote ControlWired
Rated Line Pull16000 lbs.-18000 lbs.
Recommended UseTrucks
Fairlead Typehawse
Line Length75'-100'
