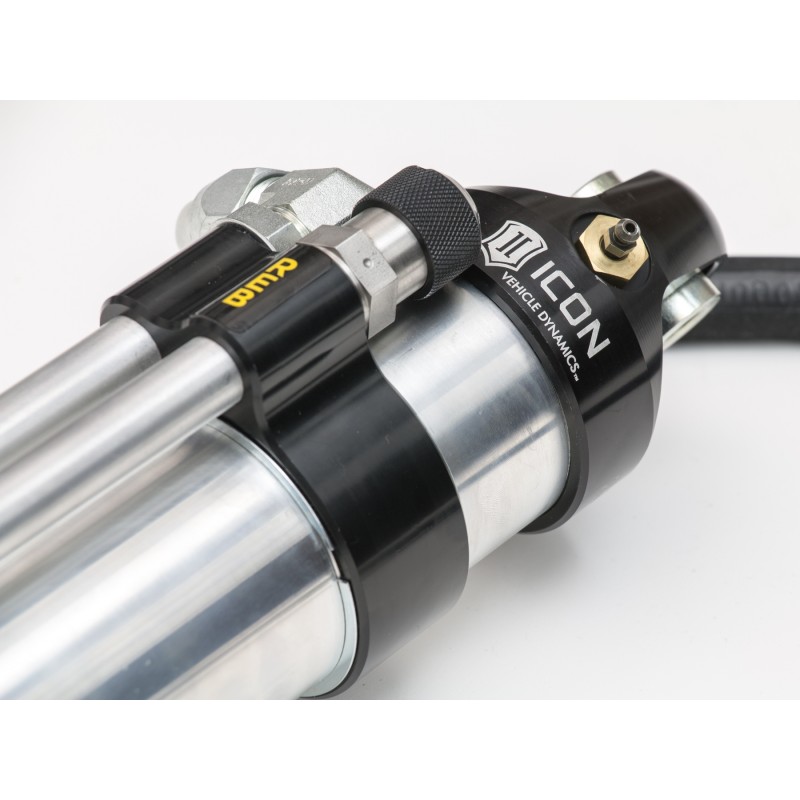

ICON Vehicle Dynamics 2007-UP TUNDRA S2 2.5 VS REMOTE RESERVOIR OMEGA PAIR

Part no: FRDK-59922P

THIS ITEM IS OUT OF STOCK

We're sorry! This product is out of stock. Need help finding a similar product?
Give us a call!! 1-877-553-5337 or Chat with one of our Jeep Experts.

$2,089.95
Make sure it fits!

This product fits only specific vehicles.

Select Your Vehicle

Product Details

  • Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning
  • Bypass tubes are replaceable in the event of damage
  • Internal Bump Zone increases damping force to provide more control as the shock approaches full compression
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 7/8 diameter induction hardened, chrome plated shock shaft
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 aircraft grade aluminum CNC machined components
  • CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
  • 100% Rebuildable
  • 100% Revalveable
  • ICON's Bypass Valve technology allows adjustment of compression and rebound damping with high resolution across the entire adjustment range
Read more

Product Info

Description

ICON Omega Series Bypass shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in length but allow the user to customize the ride characteristics to their liking through adjustment of the bypass valves. Like all ICON shock absorbers, Omega Series shocks are 100% rebuildable and 100% revalveable. ICONs use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used, creates a significant increase in damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON Bypass Valve is an externally adjustable valve that restricts oil flow through the bypass tube and provides 28 settings of compression and rebound adjustment with no tools required.

Product Details

  • Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning
  • Bypass tubes are replaceable in the event of damage
  • Internal Bump Zone increases damping force to provide more control as the shock approaches full compression
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 7/8 diameter induction hardened, chrome plated shock shaft
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 aircraft grade aluminum CNC machined components
  • CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
  • 100% Rebuildable
  • 100% Revalveable
  • ICON's Bypass Valve technology allows adjustment of compression and rebound damping with high resolution across the entire adjustment range
For California residents: Proposition 65 Warning

Additional Info

SKUFRDK-59922P
Manufacturer Part Number59922P
Variant ID6373299
BrandIcon Vehicle Dynamics
Part TypeShock
SKU Aliases59922P

What It Fits

YearsMakeModel
2007-2021ToyotaTundra
